Description

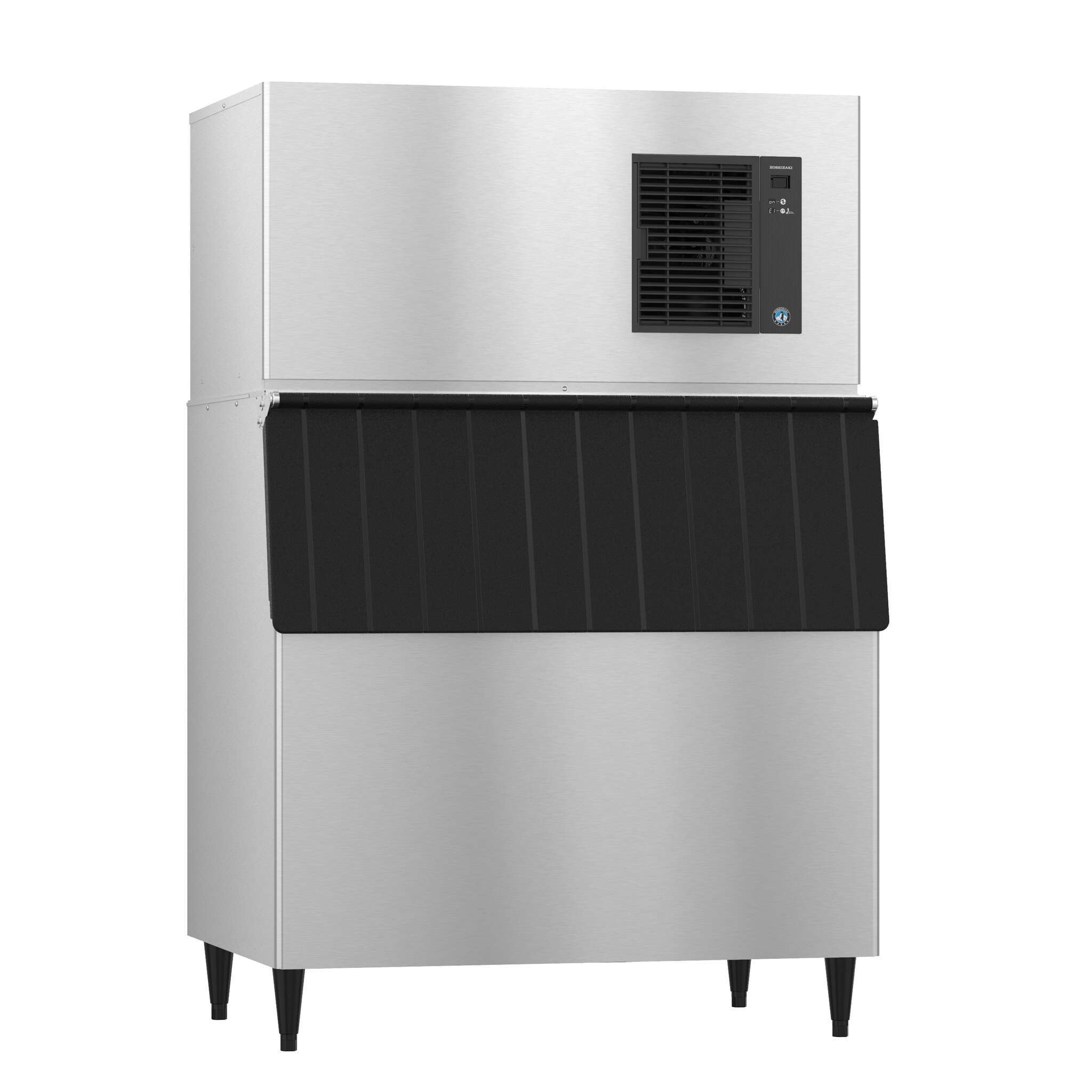

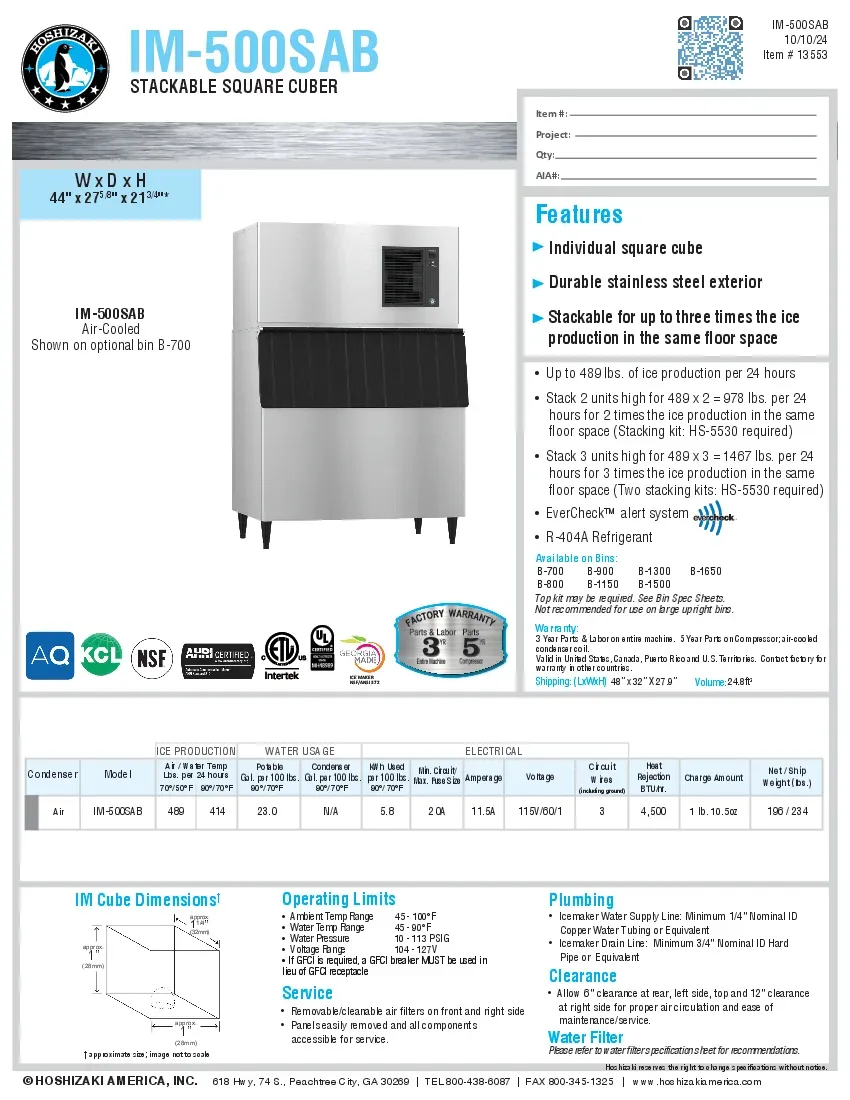

The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. PFAS Warning: This product contains PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl)oxy]-, polymer with 1,1,2,2-tetrafluoroethene.

Specifications

Amps	11.5 amps
Voltage	115v
Width	44"
Cooling	air-cooled
Ice Type	cube-style
Control Type	digital control
Product Type	ice maker
Safety and Compliance	NSF, cETLus, UL
Output	production capacity up to 489 lb/24 hours
Refrigerant Type	R-404A
Compressor Style	self-contained
Features	stackable
Material	stainless steel
